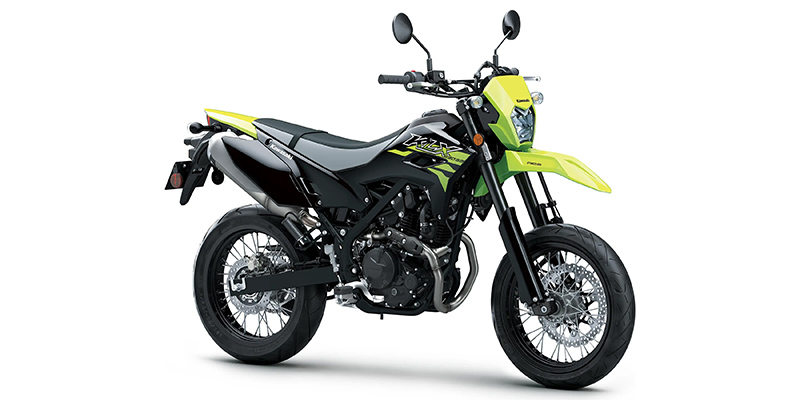

2026 Kawasaki KLX® 230 SM ABS

Check Availability Hi, my name is and I'm interested in this 2026 Kawasaki KLX® 230 SM ABS . I'm in the area and you can reach me at or on my phone at .

Engine

  • Engine Type:
    Single-Cylinder
  • Cylinders:
    1
  • Engine Stroke:
    4-Stroke
  • Horsepower (bhp):
    17
  • Horsepower (kW):
    12.7
  • Horsepower RPM:
    8000
  • Torque (Ft Lbs):
    13
  • Torque (Nm):
    17.6
  • Torque RPM:
    6400
  • Cooling:
    Air
  • Valves:
    2
  • Valves Per Cylinder:
    2
  • Valve Configuration:
    SOHC
  • Bore (mm):
    67
  • Bore (in):
    2.64
  • Stroke (mm):
    66
  • Stroke (in):
    2.6
  • Displacement (cc):
    233
  • Displacement (ci):
    14.2
  • Compression Ratio:
    9.4:1
  • Starter:
    Electric
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas

Brakes

  • Front Brake Type:
    Hydraulic Disc
  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220

Carburetion

  • Carburetion Brand:
    Keihin
  • Fuel Injector:
    Yes
  • Fuel Injector Size (mm):
    32
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    80.1
  • Length (mm):
    2034.5
  • Width (in):
    33.3
  • Width (mm):
    846
  • Height (in):
    44.3
  • Height (mm):
    1125
  • Wheelbase (in):
    53.7
  • Wheelbase (mm):
    1364
  • Ground Clearance (in):
    8.7
  • Ground Clearance (mm):
    221
  • Length (ft):
    6.68
  • Length (ft/ft):
    6
  • Length (ft/in):
    8.1

Other

  • Fuel Capacity (gal):
    2
  • Fuel Capacity (l):
    7.6
  • Frame:
    Steel
  • Body Material:
    Plastic
  • Side Cover:
    Yes
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Front Suspension Type:
    Inverted Fork
  • Front Suspension Size (in):
    1.5
  • Front Suspension Size (mm):
    37
  • Front Travel (in):
    7.4
  • Front Travel (mm):
    188
  • Fuel Level Warning Type:
    Gauge
  • SysModelID:
    172341
  • MfrModelID:
    KLX232GTFNL
  • Year:
    2026
  • Manufacturer:
    Kawasaki
  • Model Name:
    KLX®
  • Trim Name:
    230 SM ABS
  • Family Name:
    KLX®
  • Product Type:
    Motorcycle / Scooter
  • Manufacturer Type:
    Dual Purpose
  • Generic Type (Primary):
    On-Off Road
  • Manufacturer Country:
    Japan
  • Photo Name:
  • Major Revision Year:
    2024
  • Revision Status:
    Carryover
  • Competitor Code:
    MOT26ECA000
  • Introduction Year:
    2023
  • SysTrimId:
    664715
  • SysMakeId:
    3
  • IsCurrent:
    Yes
  • Historical ID:
    582663
  • Data Provider:
    CRS
  • Parent Company:
    Kawasaki
  • Display Name:
    KLX®230 SM ABS
  • Engine Displacement to Weight (cc):
    0.82
  • Currency:
    US Dollars
  • Warranty (Months):
    6
  • Destination Charge:
    435
  • Warranty (Condition):
    Limited
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    8.8
  • Rear Travel (mm):
    223.5
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Adjustable Rebound Damping:
    Yes
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Brand Name:
    UNI-TRAK®
  • Rear Suspension Material:
    Aluminum
  • Folding:
    Yes
  • Seat Type:
    One-Piece
  • Seat Material:
    Vinyl
  • Seat Location:
    Driver and Passenger
  • Seat Height (in):
    33.1
  • Seat Height (mm):
    841
  • Number Of Seats:
    2
  • Stand Type:
    Kick
  • Steering Control:
    Handlebar
  • Temperature Warning Type:
    Light
  • Tire Brand:
    IRC
  • Front Tire Width:
    110
  • Front Tire Aspect Ratio:
    70
  • Front Wheel Diameter:
    17
  • Rear Tire Width:
    120
  • Rear Tire Aspect Ratio:
    70
  • Rear Wheel Diameter:
    17
  • Front Tire (Full Spec):
    IRC RX-01 Road Winner: 110/70-17
  • Rear Tire (Full Spec):
    IRC RX-01 Road Winner: 120/70-17
  • Mobile App Instrumentation:
    Yes
  • Wheels Composition:
    Aluminum
  • Tube / Tubeless:
    Tubed
  • Type:
    LED
