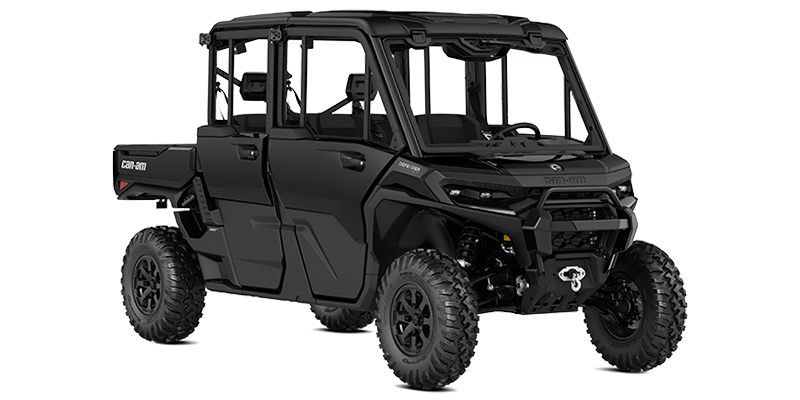

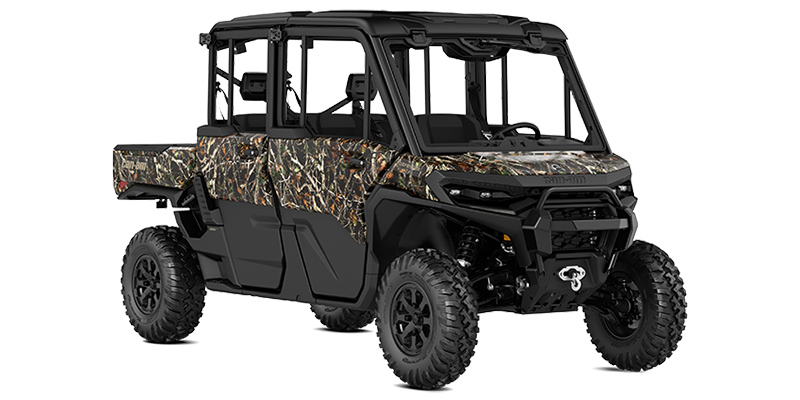

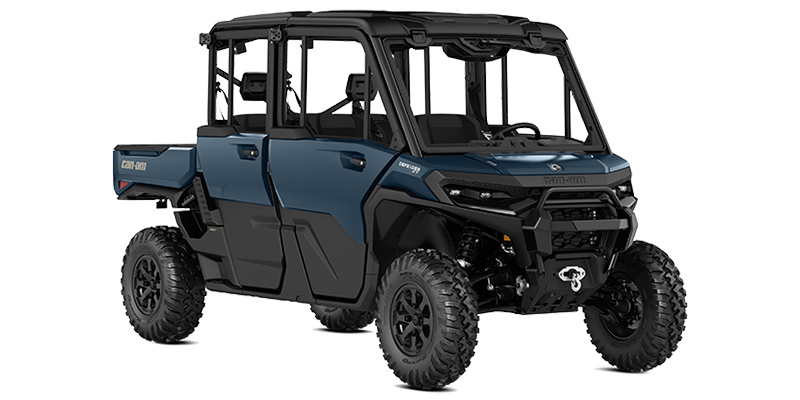

2026 Can-Am™ Defender MAX XT CAB HD11

Check Availability Hi, my name is and I'm interested in this 2026 Can-Am™ Defender MAX XT CAB HD11 . I'm in the area and you can reach me at or on my phone at .

Engine

  • Engine Brand Name:
    Rotax® ACE
  • Engine Type:
    In-Line
  • Cylinders:
    3
  • Engine Stroke:
    4-Stroke
  • Horsepower (bhp):
    95
  • Horsepower (kW):
    71
  • Torque (Ft Lbs):
    70
  • Torque (Nm):
    95
  • Cooling:
    Liquid
  • Valves:
    12
  • Valves Per Cylinder:
    4
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Starter:
    Electric
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas

Brakes

  • Front Brake Type:
    Dual Hydraulic Disc
  • Front Brake Diameter (in):
    10.3
  • Front Brake Diameter (mm):
    262
  • Rear Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    9.3
  • Rear Brake Diameter (mm):
    236

Carburetion

  • Fuel Injector:
    Yes
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    162.4
  • Length (mm):
    4120
  • Width (in):
    65
  • Width (mm):
    1650
  • Height (in):
    81.4
  • Height (mm):
    2070
  • Wheelbase (in):
    117.5
  • Wheelbase (mm):
    2980
  • Ground Clearance (in):
    14
  • Ground Clearance (mm):
    356
  • Length (ft):
    13.53
  • Length (ft/ft):
    13
  • Length (ft/in):
    6.4

Other

  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Soft
  • Fuel Capacity (gal):
    11.9
  • Fuel Capacity (l):
    45
  • Storage Capacity (cuft):
    3.7
  • Storage Capacity (gal):
    23.8
  • Storage Capacity (l):
    104.8
  • Bed Length (in):
    38
  • Bed Length (mm):
    965
  • Bed Height (in):
    12
  • Bed Height (mm):
    305
  • Bed Width (in):
    54.5
  • Bed Width (mm):
    1384
  • Bed Capacity (lbs.):
    700
  • Bed Capacity (kgs.):
    318
  • Integral Tie-Down Hooks:
    Yes
  • Frame:
    Steel
  • Body Material:
    Plastic
  • Number Of Cupholders:
    4
  • Differential Lock Location:
    Front
  • Differential Lock Brand:
    Quick-4Lok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3
  • Rear Unlocking Differential:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • CV Boot Cover:
    Yes
  • Front Mud Guards:
    Yes
  • Rear Mud Guards:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    12
  • Front Travel (mm):
    305
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Fuel Level Warning Type:
    Gauge
  • SysModelID:
    199367
  • MfrModelID:
    0009ftl00
  • Year:
    2026
  • Manufacturer:
    Can-Am™
  • Model Name:
    Defender MAX
  • Trim Name:
    XT CAB HD11
  • Family Name:
    Defender
  • Product Type:
    Utility Vehicle
  • Manufacturer Type:
    Work
  • Generic Type (Primary):
    Utility
  • Manufacturer Country:
    Canada
  • Photo Name:
  • Major Revision Year:
    2026
  • Revision Status:
    New
  • Competitor Code:
    UTE26U4G000
  • Introduction Year:
    2026
  • Manufacturer Recommend Minimum Age:
    16
  • SysTrimId:
    654693
  • SysMakeId:
    389
  • IsCurrent:
    Yes
  • Data Provider:
    CRS
  • Parent Company:
    BRP
  • Display Name:
    Defender MAX XT CAB HD11
  • Speed Governor:
    Yes
  • Engine Displacement to Weight (cc):
    0.38
  • Currency:
    US Dollars
  • Warranty (Months):
    12
  • Warranty (Condition):
    Limited
  • Size (in):
    2
  • Size (cm):
    5.1
  • Rear Hitch Type:
    Receiver
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    12
  • Rear Travel (mm):
    305
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Adjustment Type:
    Shock Mounted Adjustment
  • Seat Type:
    Bench
  • Seat Material:
    Vinyl
  • Folding:
    Yes
  • Headrest:
    Yes
  • Number Of Seats:
    6
  • Number Of Rows:
    2
  • Bash Plate (Front):
    Yes
  • Full Length Skid Plate:
    Yes
  • Steering Type:
    Power
  • Steering Control:
    Steering Wheel
  • Temperature Warning Type:
    Light
  • Tire Brand:
    XPS
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Front Tire (Full Spec):
    XPS Trail King 2: 29 x 9-14
  • Rear Tire (Full Spec):
    XPS Trail King 2: 29 x 11-14
  • Tread Type:
    Knobby
  • Wheels Composition:
    Aluminum
  • Front Tire Diameter (in):
    29
  • Rear Tire Diameter (in):
    29
  • Weight (lbs):
    4500
  • Weight (kgs):
    2041
  • Type:
    LED
