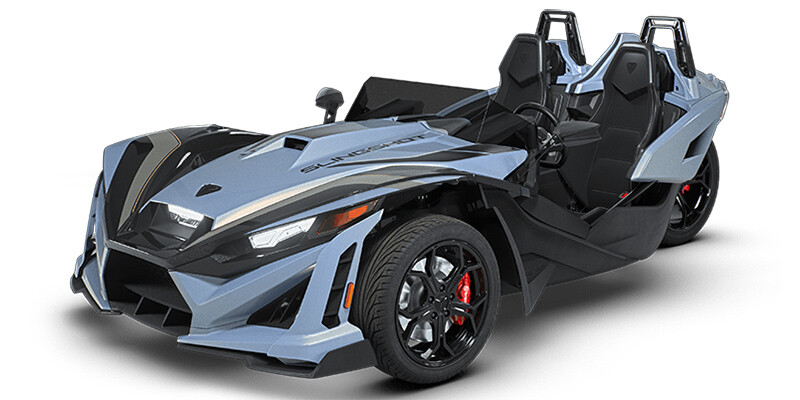

Slingshot® Signature Edition Manual

Slingshot® Signature Edition Manual

Description

THE GOLD STANDARD

Slingshot Signature Edition takes everything that defines the high-performance R model and elevates it to something truly rare. With its premium, color-shifting paint, Stage 3 Max + Lighting Rockford Fosgate® audio with XKGlow® lighting, exclusive graphics, and Signature Edition branding, it’s built for those who expect more from every mile. With limited quantities made, this is more than a ride — it’s a moment in motion you won’t want to miss.

Specifications

  • ENGINE
    add remove
    • Engine Brand Name
      ProStar™
    • Cylinders
      4
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      204.1
    • Torque (Nm)
      203.1
    • Bore (in)
      3.66
    • Stroke (in)
      2.89
    • Displacement (cc)
      1997
    • Compression Ratio
      12.5:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Gear Ratio (1)
      3.25
    • Gear Ratio (2)
      1.96
    • Gear Ratio (3)
      1.31
    • Gear Ratio (4)
      1
    • Gear Ratio (5)
      0.75
    • Final Drive Ratio
      1.77
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      149.6
    • Width (in)
      77.9
    • Height (in)
      51.9
    • Wheelbase (in)
      105
    • Ground Clearance (in)
      5.4
    • Wet Weight (lbs)
      1652
    • Fuel Capacity (gal)
      9.8
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double A-Arm
    • Rear Suspension Type
      Single Sided Swing Arm
    • Number Rear Shock Absorbers
      1
  • WHEELS & TIRES
    add remove
    • Front Tire (Full Spec)
      Kenda SS-799: 225/45 R18
    • Rear Tire (Full Spec)
      Kenda SS-799: 305/30 R20
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      13.3
    • Front Brake Diameter (mm)
      339
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      11.7
    • Rear Brake Diameter (mm)
      298
  • Color options
    add remove
    • Golden Steel with Black Crystal
