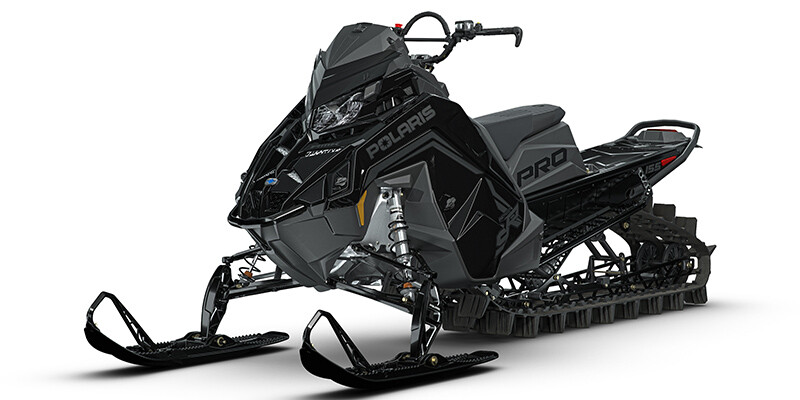

Patriot 9R PRO-RMK® 155

Patriot 9R PRO-RMK® 155

Description

THE INDUSTRY'S LIGHTEST MOUNTAIN SLEDS

This sled is a scalpel—instant lift and quick response when you need it most. Starting at 414lbs, it’s lighter than the competition, which means less fight and more flow

Specifications

  • ENGINE
    add remove
    • Engine Brand Name
      Patriot 9R
    • Engine Type
      Horizontal In-line
    • Engine Stroke
      2-Stroke
    • Valve Configuration
      Reed Valve
    • Displacement (cc)
      899
    • Bore (in)
      3.46
    • Stroke (in)
      2.91
  • DRIVE LINE
    add remove
    • Track Length (in)
      155
    • Track Width (in)
      15
    • Lug Height (in)
      2.75
    • Number Of Tracks
      1
    • Track Brand
      Series 8
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      126.7
    • Width (in)
      43.4
    • Height (in)
      53
    • Minimum Ski Stance (in)
      36
    • Maximum Ski Stance (in)
      38
    • Fuel Capacity (gal)
      11
    • Dry Weight (lbs)
      414
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent A-Arm
    • Front Travel (in)
      9
    • Adjustment Type
      Shock Mounted Adjustment
    • Front Shock Absorber Type
      Adjustable Gas Shock With Remote Reservoir
    • Rear Travel (in)
      16
    • Number Rear Shock Absorbers
      2
    • Front Suspension Brand Name
      RMK® React™
    • Front Shock Absorber Brand
      Walker Evans Racing (WER®)
    • Rear Shock Absorber Brand
      Walker Evans Racing (WER®)
    • Rear Shock Absorber Type
      Adjustable Gas Shock With Remote Reservoir
    • Center Shock Absorber Brand
      Walker Evans Racing (WER®)
    • Center Shock Absorber Type
      Adjustable Gas Shock With Remote Reservoir
    • Rear Suspension Brand Name
      PRO-RMK
  • BRAKES
    add remove
    • Rear Brake Type
      Hydraulic Disc
    • Brake Brand Name
      RMK®
  • Color options
    add remove
    • Gloss Black
    • Sunrise Silver Metallic / Gloss Black / Indy Red
    • Blue Dusk / Gloss Black / Neon
    • INDY® Red / White Lightning / Gloss Black
    • White Lightning / Velocity Blue
    • Ghost White Metallic / Plum Crazy / Turbo Silver
