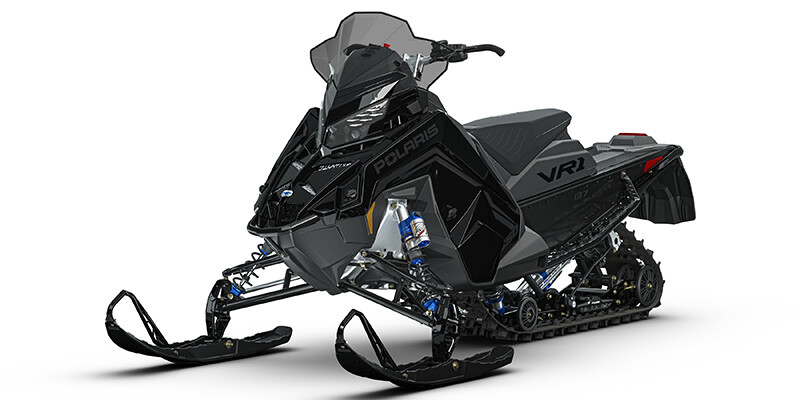

650 INDY^® VR1 137

Specifications

• ENGINE

  add remove
  • Engine Brand Name
    Patriot™
  • Engine Type
    Horizontal In-line
  • Engine Stroke
    2-Stroke
  • Valve Configuration
    Reed Valve
  • Displacement (cc)
    650
  • Bore (in)
    2.94
  • Stroke (in)
    2.91
• DRIVE LINE

  add remove
  • Track Length (in)
    137
  • Track Width (in)
    15
  • Lug Height (in)
    1.35
  • Number Of Tracks
    1
  • Track Brand
    Cobra Track
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    120
  • Width (in)
    47
  • Height (in)
    46
  • Minimum Ski Stance (in)
    42.5
  • Maximum Ski Stance (in)
    42.5
  • Fuel Capacity (gal)
    11.5
  • Dry Weight (lbs)
    497
• SUSPENSION

  add remove
  • Front Suspension Type
    Independent A-Arm
  • Front Travel (in)
    9.5
  • Adjustment Type
    Shock Mounted Adjustment
  • Front Shock Absorber Type
    Adjustable Gas Shock With Remote Reservoir
  • Rear Travel (in)
    16.2
  • Number Rear Shock Absorbers
    2
  • Front Suspension Brand Name
    MATRYX
  • Front Shock Absorber Brand
    Walker Evans Racing (WER®)
  • Rear Shock Absorber Brand
    Walker Evans Racing (WER®)
  • Rear Shock Absorber Type
    Adjustable Gas Shock With Remote Reservoir
  • Center Shock Absorber Brand
    Walker Evans Racing (WER®)
  • Center Shock Absorber Type
    Adjustable Gas Shock With Remote Reservoir
  • Rear Suspension Brand Name
    PRO-CC
• BRAKES

  add remove
  • Rear Brake Type
    Hydraulic Disc
  • Brake Brand Name
    Matryx Stealth
• Color options

  add remove
  • Gloss Black
  • Polaris Blue Metallic / White Lightning / Indy Red
  • Blue Dusk / Gloss Black / Neon
  • INDY® Red / White Lightning / Gloss Black
  • White Lightning / Velocity Blue
  • Ghost White Metallic / Plum Crazy / Turbo Silver
