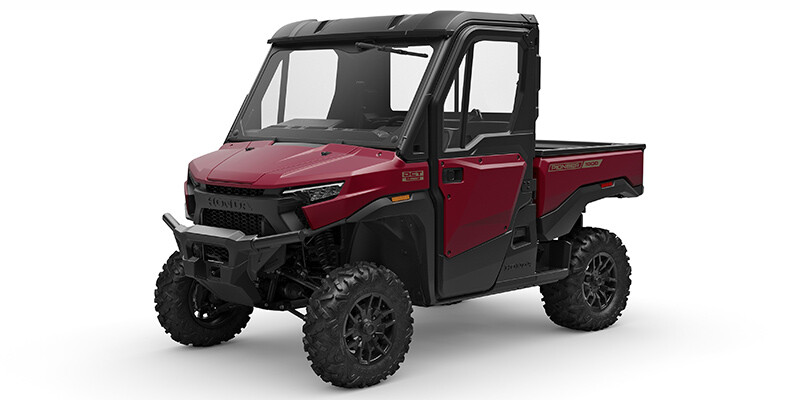

2026 Pioneer 1000 Elite

Specifications

• Engine

  add remove
  • Engine Type
    Parallel Twin
  • Engine
    Standard
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (mm)
    92
  • Bore (in)
    3.62
  • Stroke (mm)
    75.2
  • Stroke (in)
    2.96
  • Displacement (cc)
    999
  • Displacement (ci)
    60.9
  • Starter
    Electric
  • Fuel Type
    Gas
  • Fuel Requirements
    Regular
  • Carburetion
    Standard
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Parental Controls
    Standard
  • Snorkel Air Intake
    Not Available
  • Engine Block Heater
    Not Available
  • Number Of Carburetors
    0
  • Speed Governor
    Yes
  • Other Engine
    Not Available
  • Compression Ratio
    10:1
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Manual / Automatic Clutch
  • Number Of Speeds
    6
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Other Transmission
    Not Available
  • Transmission Brand
    Honda DCT
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    4
  • Rear Solid Axle
    No
  • Limited Slip Differential
    Standard
  • Differential Lock
    Standard
  • Differential Lock Location
    Front / Rear
  • Driveline Brand
    i4WD
  • Other Drive Line
    Not Available
  • Limited Slip Differential Location
    Front / Rear
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Weight
    Standard
  • Capacities
    Standard
  • Performance
    Standard
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent Double Wishbone
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Independent Double Wishbone
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    10
  • Rear Travel (mm)
    254
  • Number Rear Shock Absorbers
    2
  • Rear Stabilizer Bar
    Yes
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Front Suspension Brand Name
    Showa®
  • Rear Suspension Brand Name
    Showa®
  • Front Stabilizer Bar
    Yes
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Aluminum
  • Front Tire Diameter (in)
    27
  • Rear Tire Diameter (in)
    27
  • Wheel Weights
    Not Available
  • Tires
    Standard
  • Front Wheel Diameter
    14
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    Maxxis® Big Horn 2.0: 14-Inch Wheels
  • Rear Tire (Full Spec)
    Maxxis® Big Horn 2.0: 14-Inch Wheels
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
  • Tire Brand
    Maxxis®
  • Other Wheels & Tires
    Not Available
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Parking Brake
    Standard
  • Engine Braking
    Standard
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
  • Linked Brake System Front to Rear
    Not Available
  • Other Brakes
    Not Available
• Color options

  add remove
  • Crimson Red
  • Cactus Green
