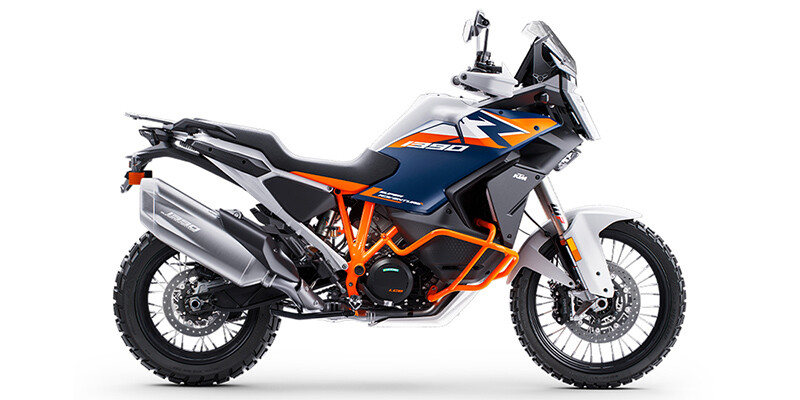

2026 1390 Super Adventure R

2026 1390 Super Adventure R

Description

Open a map app, find the most remote location, and hit navigate. The KTM 1390 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself with a stable of hard-hitting predecessors, but the KTM 1390 SUPER ADVENTURE R nameplate remains the ultimate READY TO RACE v-twin-powered travel machine ever made.

Specifications

  • ENGINE
    add remove
    • Engine Type
      V Twin
    • Engine Stroke
      4-Stroke
    • Bore (in)
      4.33
    • Stroke (in)
      2.8
    • Displacement (cc)
      1350
    • Horsepower (bhp)
      190
    • Compression Ratio
      13.2:1
    • Torque (Ft Lbs)
      107
    • Torque (Nm)
      145
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
    • Overdrive
      Yes
    • Primary Drive (Engine / Transmission)
      Gear
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      62.1
    • Ground Clearance (in)
      9.5
    • Ground Clearance (mm)
      242
    • Dry Weight (lbs)
      509.3
    • Fuel Capacity (gal)
      6.1
    • Fuel Capacity (l)
      23
    • Engine Displacement to Weight (cc)
      2.7
    • Wet Weight (lbs)
      546.7
    • Wet Weight (kg)
      248
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      48
    • Front Travel (in)
      9.4
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      9.4
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP XPLOR
    • Rear Suspension Brand Name
      WP XPLOR
  • WHEELS & TIRES
    add remove
    • Front Wheel Width (in)
      2.5
    • Rear Wheel Width (in)
      4.3
    • Front Tire Width
      90
    • Front Wheel Diameter
      21
    • Rear Wheel Diameter
      18
    • Front Tire (Full Spec)
      Dunlop® Trailmax Raid 90/90 R21
    • Rear Tire (Full Spec)
      Dunlop® Trailmax Raid 150/70 R18
    • Rear Tire Width
      150
    • Front Tire Aspect Ratio
      90
    • Rear Tire Aspect Ratio
      70
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Front Brake Diameter (in)
      12.6
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      10.5
  • Color options
    add remove
    • Blue / White / Orange
